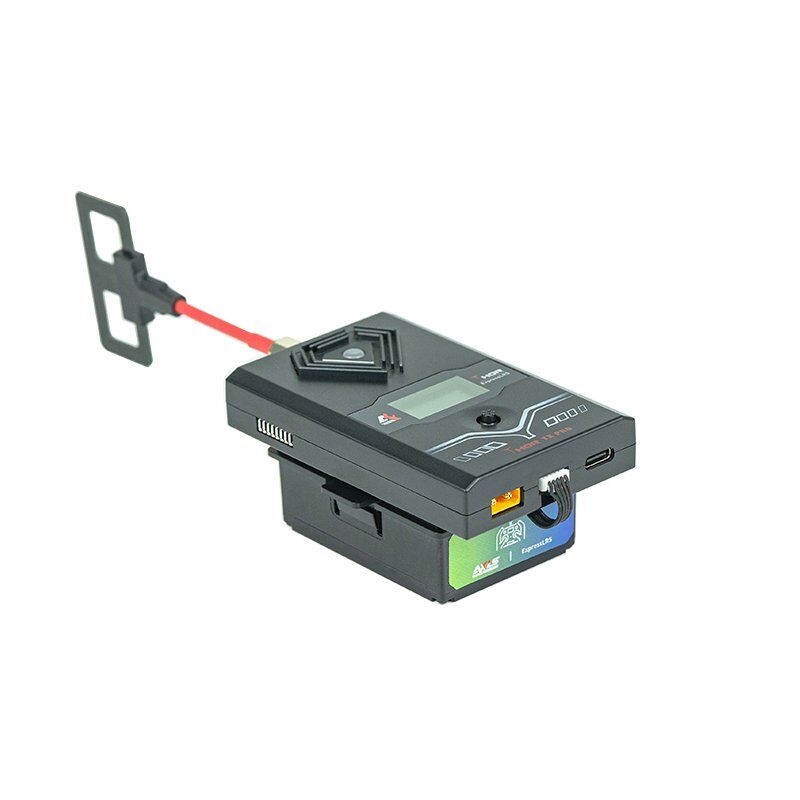

Axisflying ELRS 2.4G module Thor TX PRO 10-1000mW

The Axisflying Thor TX Pro is a fully-featured ELRS micro TX module for pilots wanting the best possible experience on ELRS. The Thor TX Pro does not skimp on quality. Built with a robust exterior made with aluminum, the module feels solid. There is a storage bay in the to put receivers when not in use. The Thor TX Pro can dish out up to 1W of output power due to the well-designed case and active cooling fan. The XT30 input port allows you to power the module externally so you don’t drain your radio battery. The LCD screen allows for easy parameter changes on the fly!

Features

• Built-in color display with motion detection and Joystick control
• Backpack Function
• Aluminum Exterior
• XT30 Input Port

Specifications

• XT30 port: 7V~21V, DOES NOT support 6S or above battery voltage
• RF output power: 25mW/50mW/100mW/250mW/500mW/1000mW
• Packet refresh rate: 50Hz/150Hz/250Hz/500Hz
• Storage Box Size: 29x29x15.5mm
• Frequency band: 2.4GHz ISM
• Weight (Including JR): ~105g
• automatic or active cooling
• Dimensions: 87x55x15mm
• Input voltage: 5V~12V
• Wi-Fi update capable
• USB port: Type-C

Note: Please assemble the antenna before power on. Otherwise, the PA chip in the Micro TX module will be damaged permanently.

Note: Please DO NOT use a 6S or above battery to power up the TX module via XT30 port. Otherwise, the power supply chip in the TX module can be damaged permanently.

Includes

• 1x AxisFlying ELRS 2.4G Thor TX Pro 10-1000mW Micro TX module
• 1x AxisFlying 2.4G Antenna (for Transmitter)
• 1x AxisFlying Micro JR Bay adapter
• 1x Silicone Wiring
• 1x Heat Shrink
