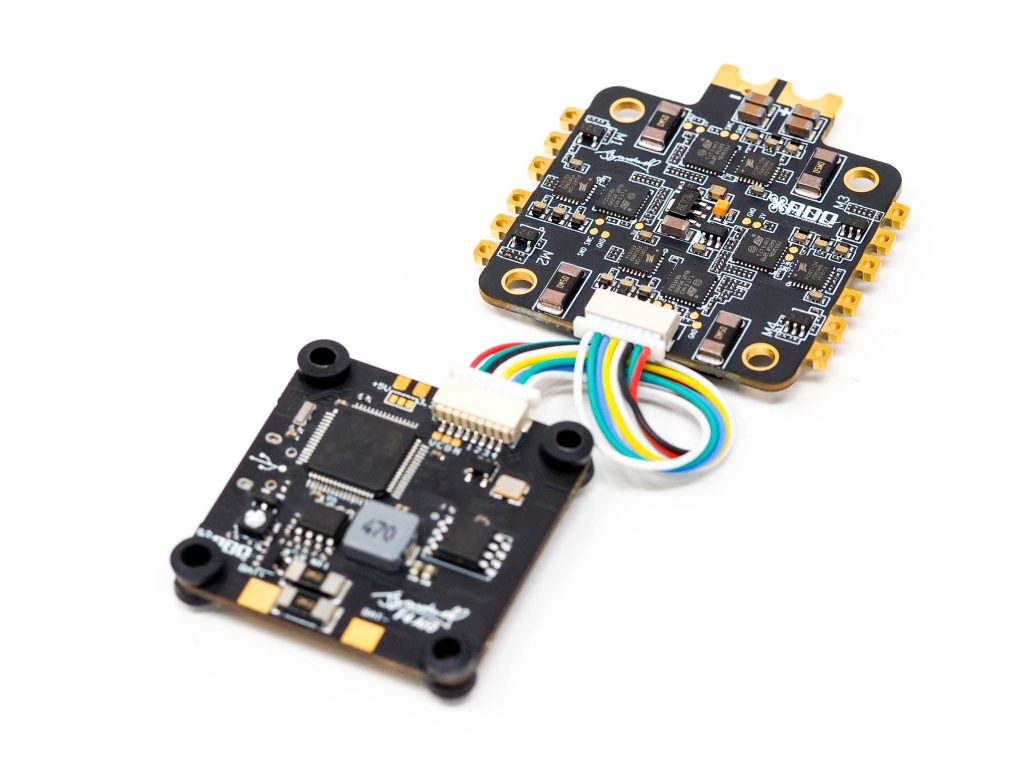

The Bardwell F4 AIO Flight Controller now has it’s perfect match for those looking at a 32 Bit 4n1 ESC! Made to be a plug and play with the Bardwell F4 FC, it is near impossible to find a more robust and clean setup for the price. Supporting DShot1200 and taking a 3-6s direct lipo input, this setup is ready for racing or freestyle any day of the week!
Note that even though this ESC is plug-n-play with the Bardwell FC, it is a fantastic selection on any build, regardless of the flight controller being used. Always take care to check the pin out on your FC and ESC match. Adjust the pins of the wire harness as required so that everything is connected appropriately.
✓ Battery: 3-6s
✓ Constant Current: 30A
✓ Burst Current: 40A
✓ Size: 36*36mm Mounting Holes: 30.5 x 30.5
✓ Firmware: BLHeli32
✓ Wire Harness Or Direct Solder (see below)
✓ Weight: 13.1g
✓ Harness length: 60mm
✓ No BEC
1x 4 in 1 ESC
1x 65mm Power / Signal Wire Harness
Direct Solder Pads
A cool feature of the ESC is that under the wiring harness is pads for the various connections. So, if they wiring harness gets destroyed in a crash, you can remove it, direct solder to the pads and continue using the ESC. Note that in the photo below, the wiring harness connections are listed on the left and the pads are listed on the right.
