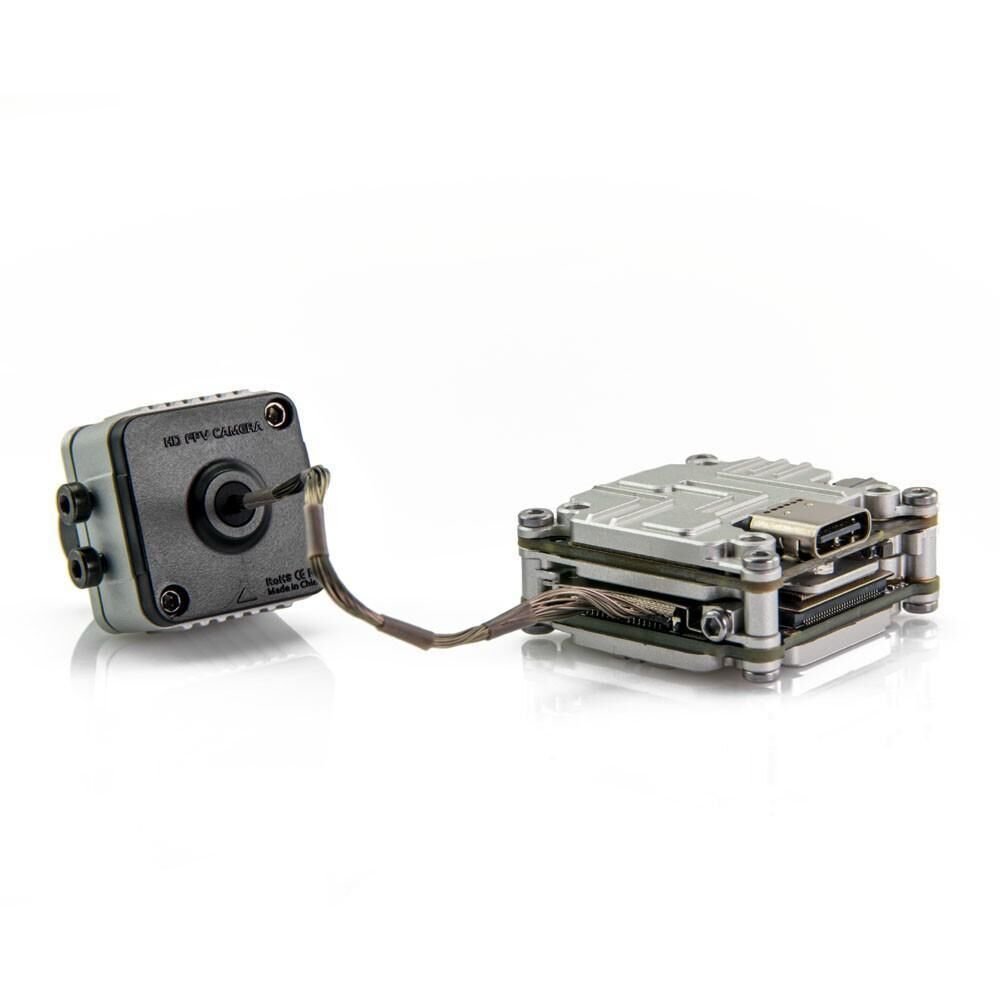

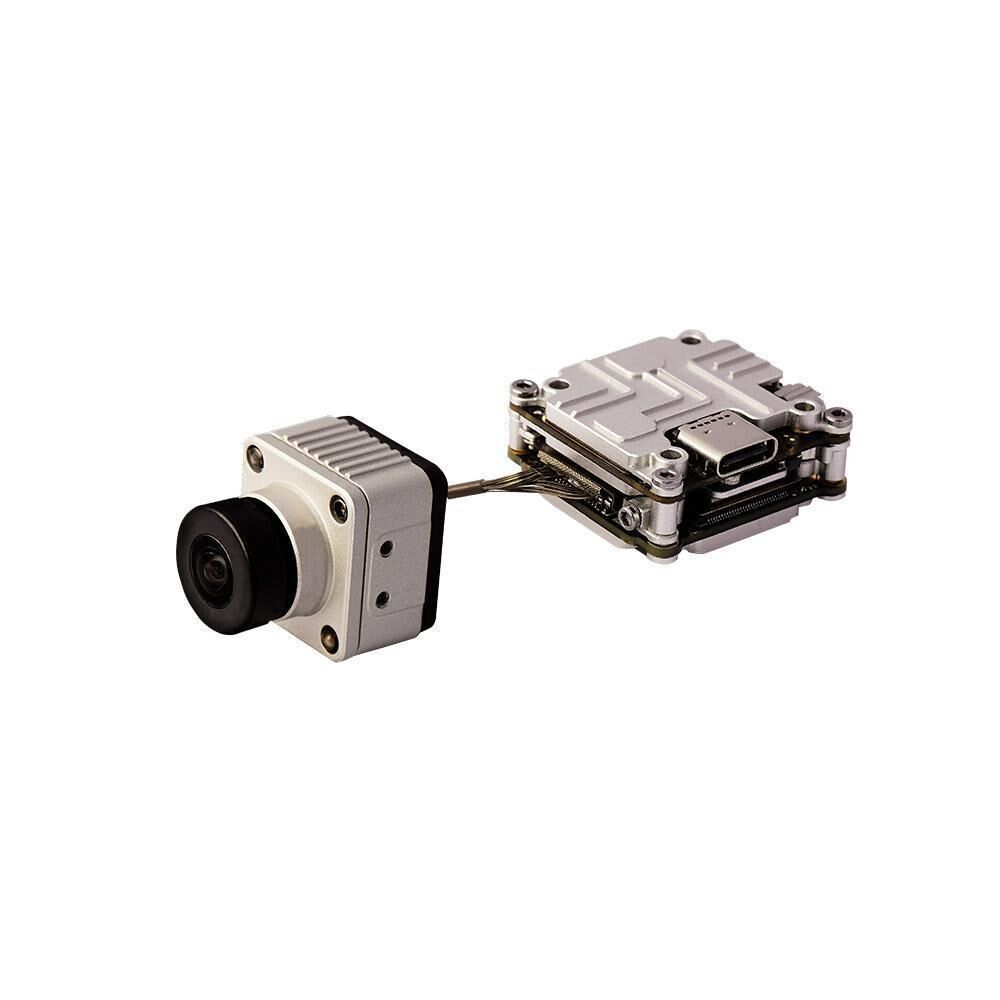

Caddx DJI Camera Vista Kit

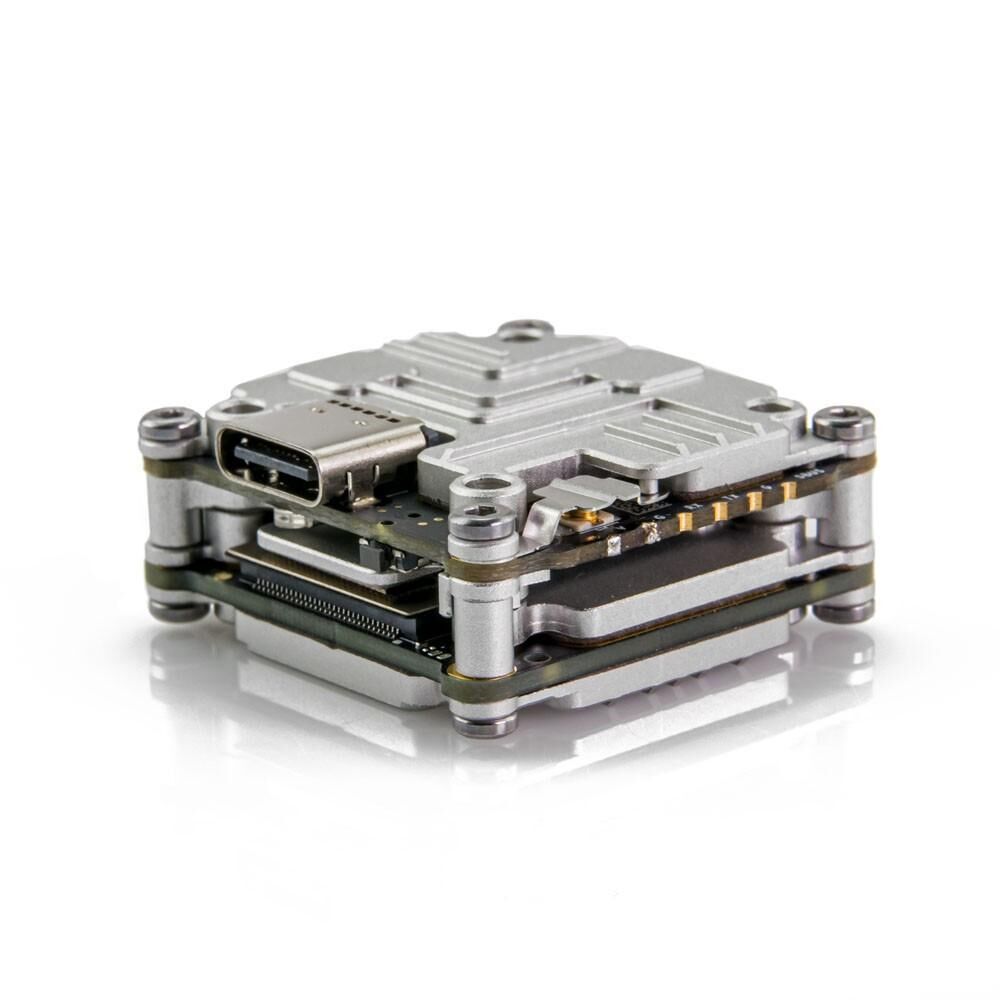

Caddx has teamed up with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Additionally, the Caddx Vista has been engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!

This is the12cm Cable Version.

FPV Camera Specifications

• Dimensions
• Module: 30.45 x 29 x 13mm
• Camera: 27.4 x 21.1 x 20.1mm
• Weight: 29g (inc. camera); Module: 19g
• Antenna Connector: u.FL
• Operating Frequency: 5.725-5.85GHz
• Transmitter Power (EIRP)
• FCC/SRRC/MIC: <20dBm
• CE: <14dBm
• I/O Interface: USB-C, IPEX, 3-in-1 Port
• Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
• High-Quality Mode (720p 60fps): 30-40ms
• Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
• Input Power: 7.4-26.4v

DJI Camera

• Camera Sensor: 1/3.2″ CMOS
• EP: 4M
• Lens: 2.1mm f/2.1
• Shutter: Rolling Shutter
• ISO: 100-25600
• Field of View: 150(D);122(H);93(V)
