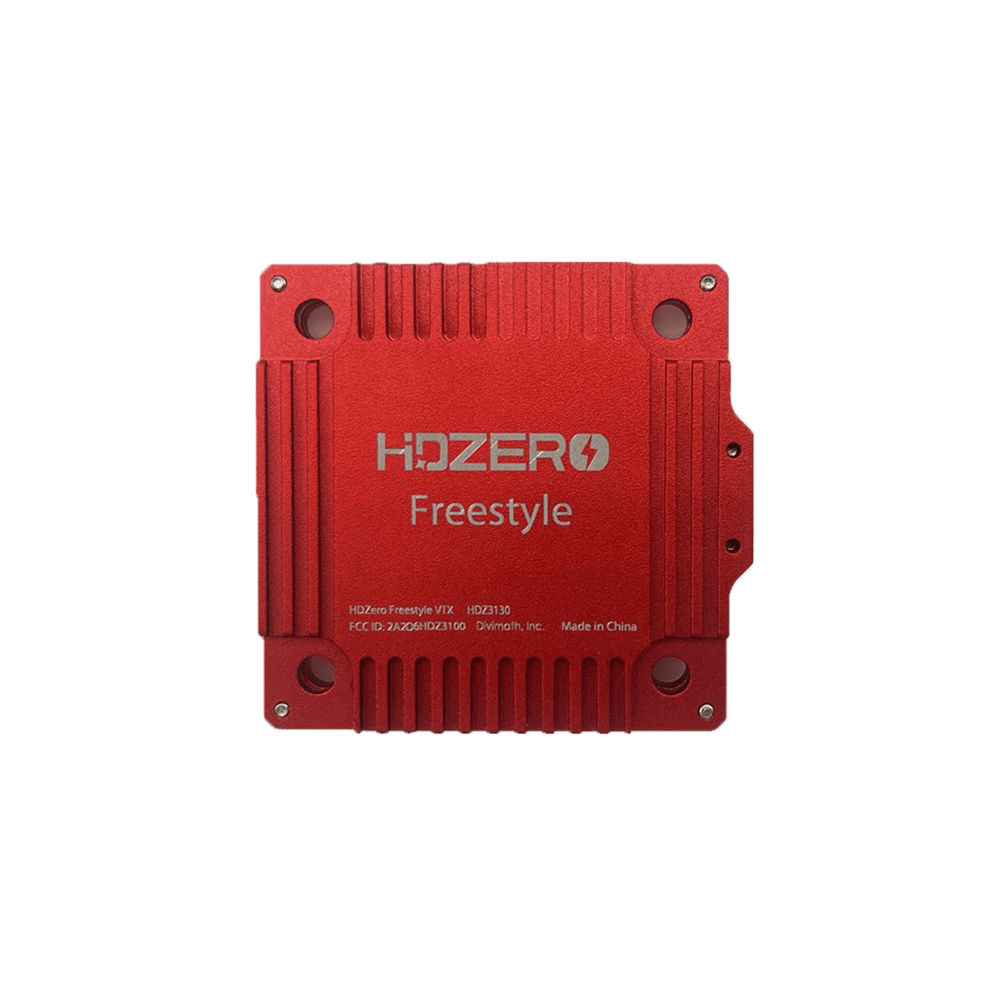

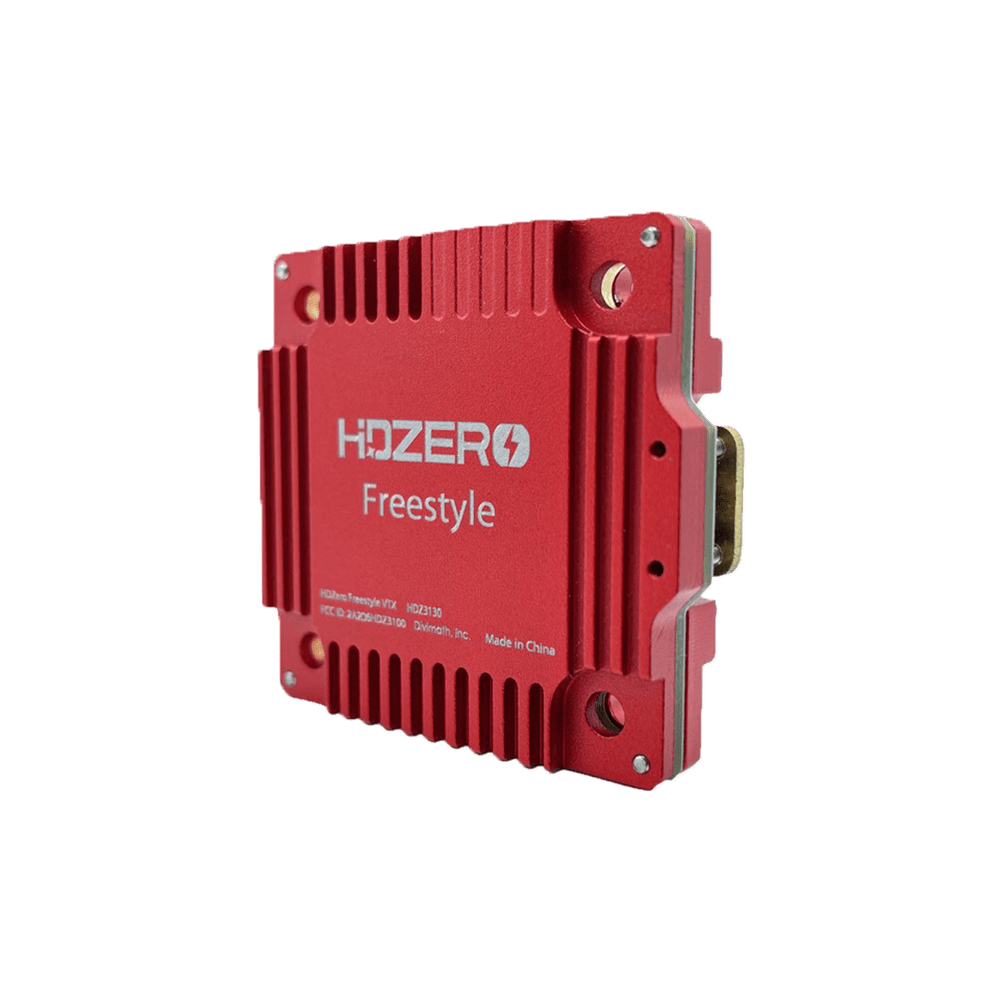

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The HDZero Freestyle VTX is a digital HD 720p 60fps 5.8GHZ video transmitter.
The power input range is 2S –4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
The VTX includes a BEC that converts 2S-6S to fixed 5.8V with maximum 5A output current. The VTX also includes an U.FL RHCP antenna.The HDZero Freestyle VTX is a digital HD 720p 60fps 5.8GHZ video transmitter.The power input range is 2S –4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad. The VTX includes a BEC that converts 2S-6S to fixed 5.8V with maximum 5A output current. The VTX also includes an U.FL RHCP antenna.
Specifications
Model: | HDZero Freestyle |
SKU: | HDZ3130 |
Frequency: | 5.725-5.850GHz |
Resolution Default: | 1280*720@60fps |
RF power: | 25mw/200mw/500mw/1000mw |
RF Connector: | Secured U.FL |
Video Connector: | Secured MIPI |
FC protocol | MSP Canvas Mode/SmartAudio |
Size: | 40mm x 42mm x 10mm |
Weight: | 28g |
Power: | 6-15W |
Power input: | 7V-17V(2S-4S) |
Mounting: | 30.5mm x 30.5mm M3 holes |

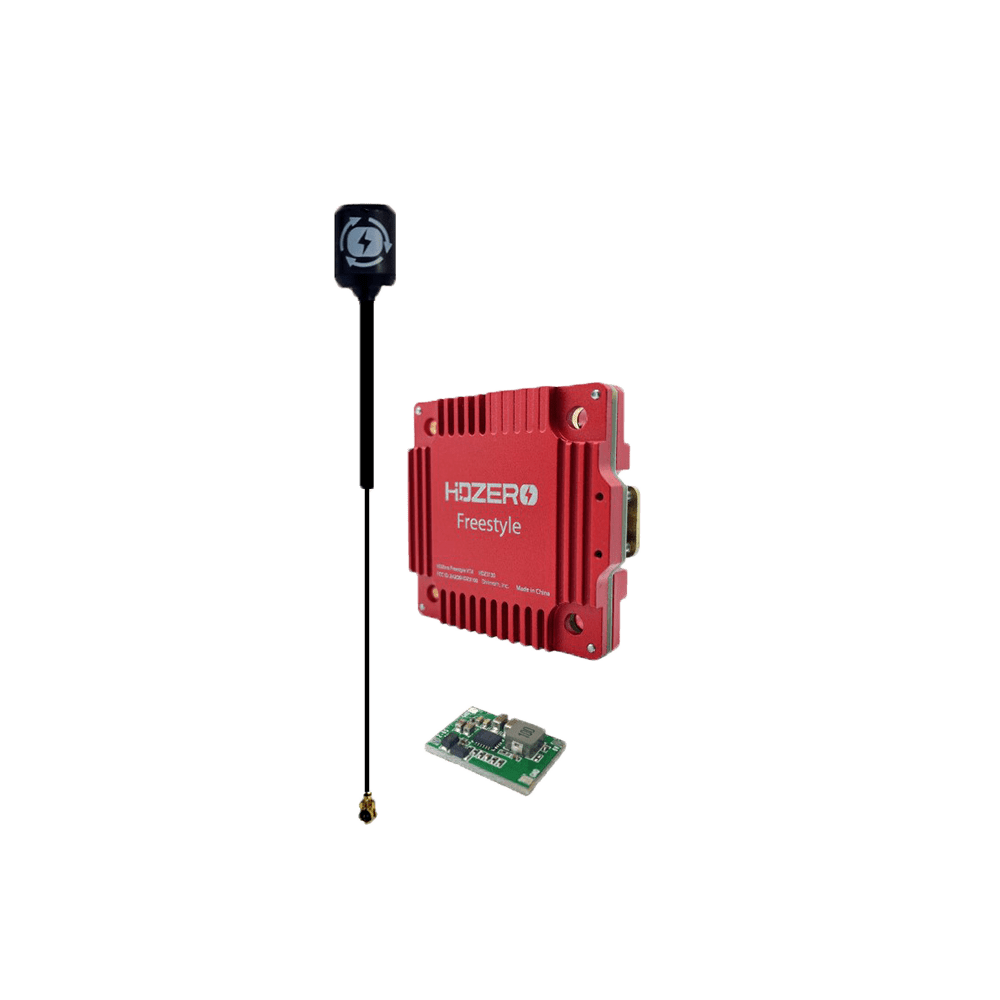

Includes
1 x HDZero Freestyle VTX
1 x HDZero RHCP Antenna
1 x Power/ Uart Cables
1 x BEC
1 x u.FL Antenna Retention Screws * 2/Plate
1 x MIPI Retention Screws * 2/Plate
Important Notes:
- Do not directly connect this VTX with 5S/6S battery.
- Use 2S-4S VBAT, or included BEC, or FC with built-in BEC:
- The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs minimum 1.5A current output.

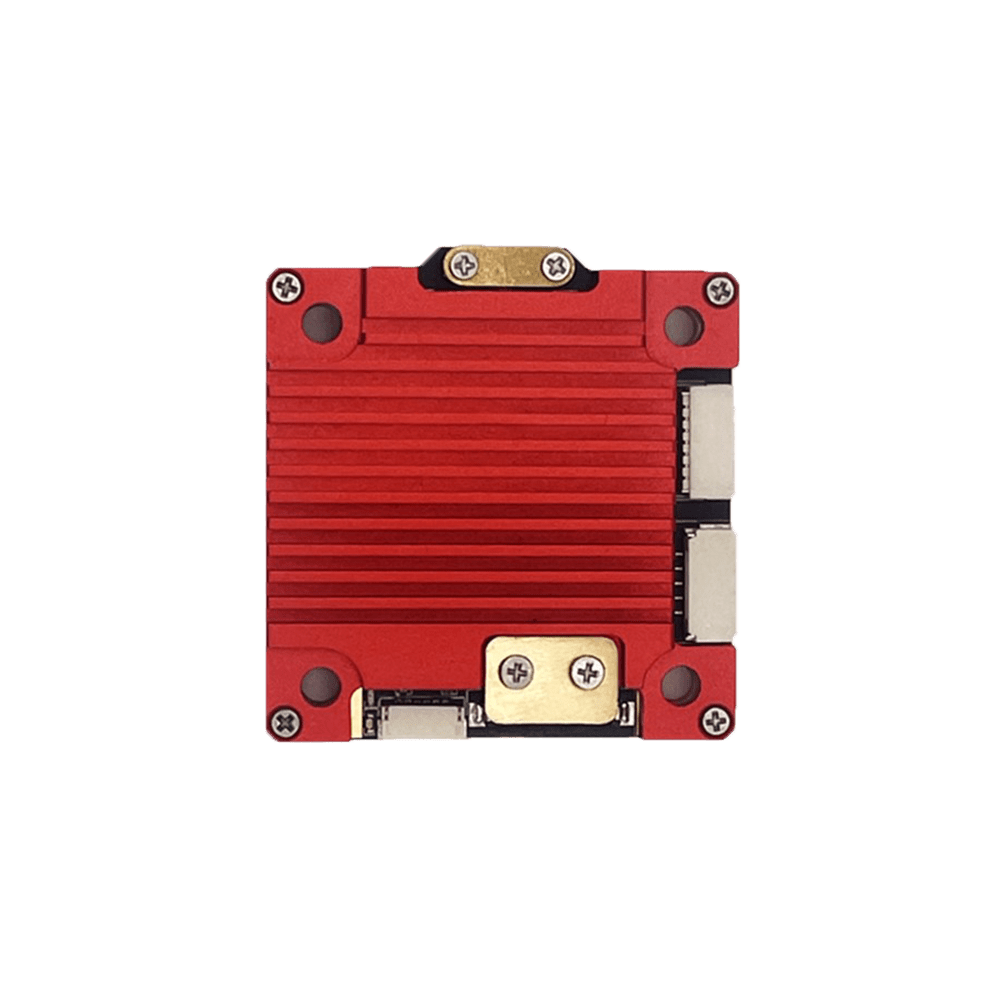

- Removing the heat sink is not recommended because it is part of the design.
