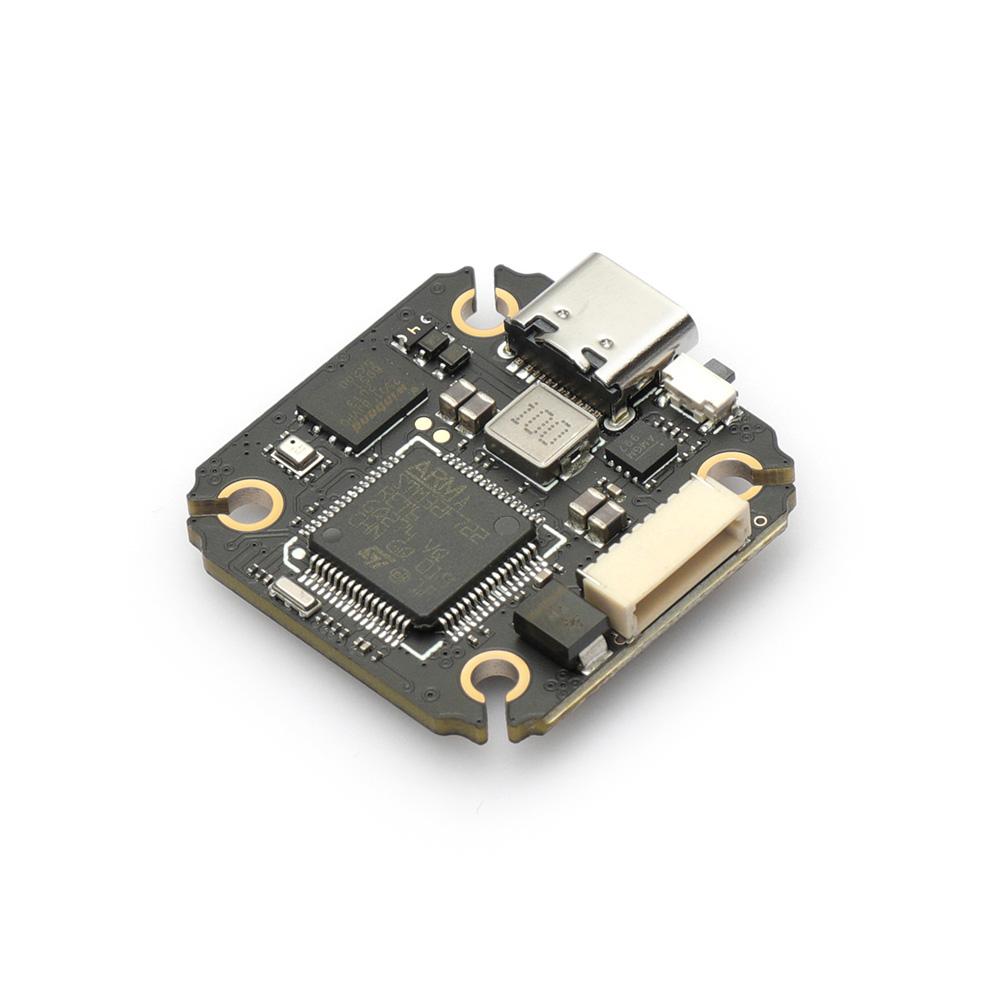

MAMBA Basic F722 MINI MK3
Diagram Link From Help Centre Link
Fixed
- Add I2C function
- When you connect the USB, the receiver and OSD settings can be saved
- Increase the pad area
- LED signal selection (when Mamba Led sys avaiable)
- BEC short circuit protection
- TVS instant high voltage protection 30V
Update
- Upgrade the anti-interference cable
- Use Typec(Most)
- The pad area of the Mini flight controller (20×20) increased by 140%
Added
- Add self-recovery insurance to the receiver’s 5V power supply.
- Increase the camera VCC power supply pad.
- The standard flight controller (30.5×30.5) adds a spare pad.
- Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference.
Specification:
Mamba Basic F722 MINI MK3 FC
MCU: 216MHz STM32F722RET6
IMU: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&5V 2.5A
MOUNTING: 20mm,M2
