$199.99 inc. GST
In stock

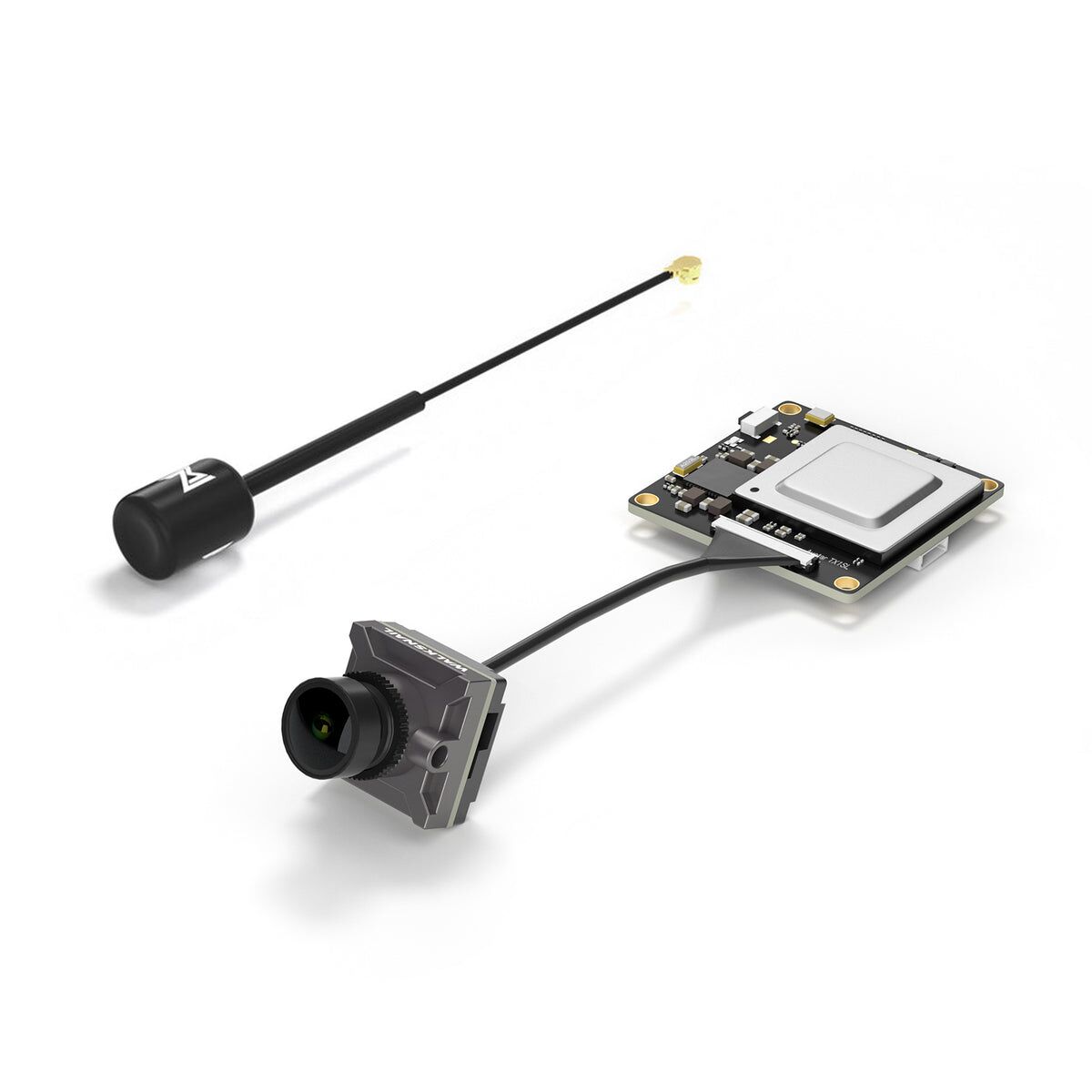

AVATAR MINI 1S KIT
Features
1080P/60fps, 22ms low latency, 3.1V-5V, Power 350mW,
1080P/60fps, 22ms low latency, 3.1V-5V, Power 350mW,
Built-in 8G storage, 6.8g light weight
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

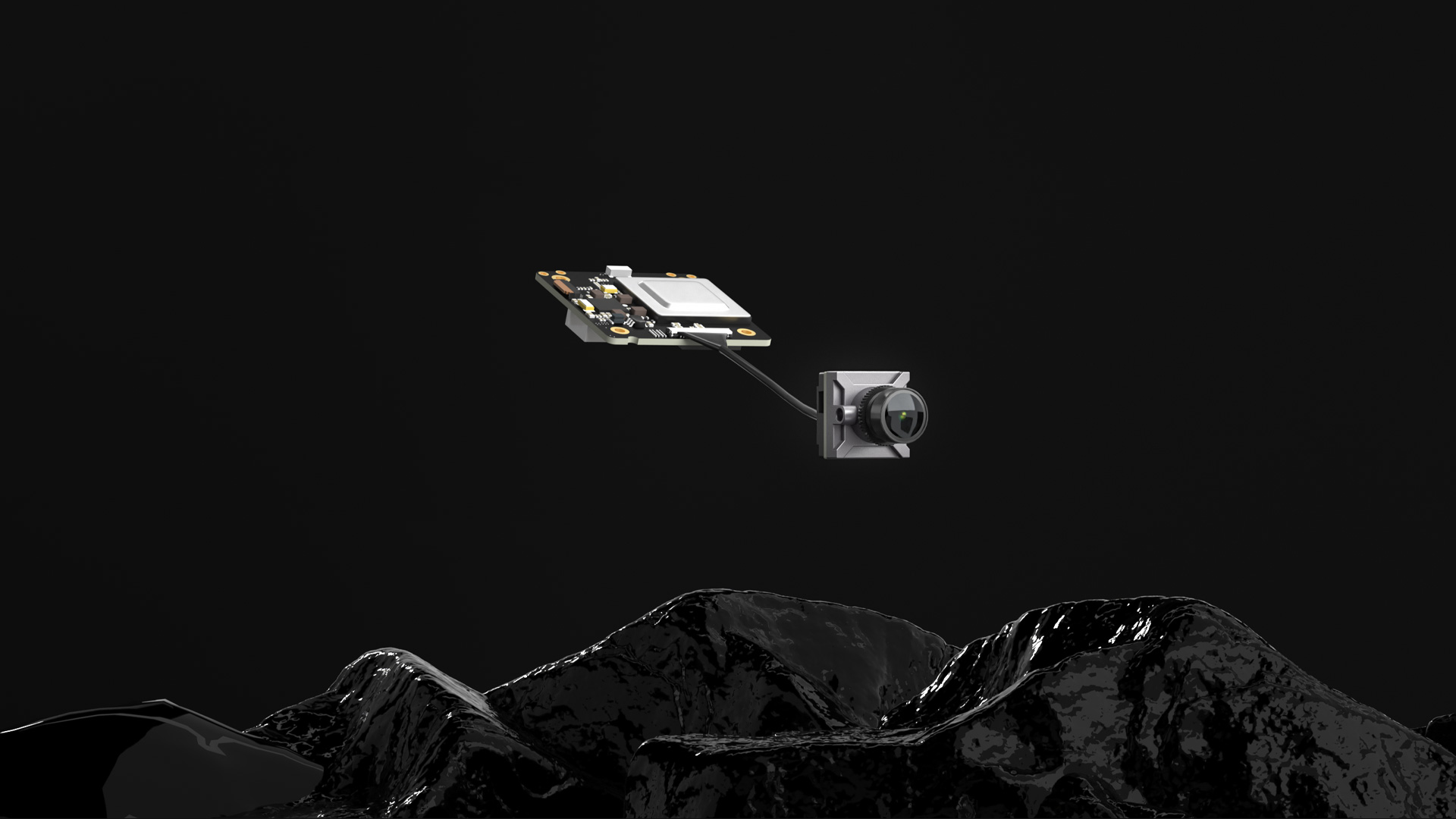

6.8g light weight board

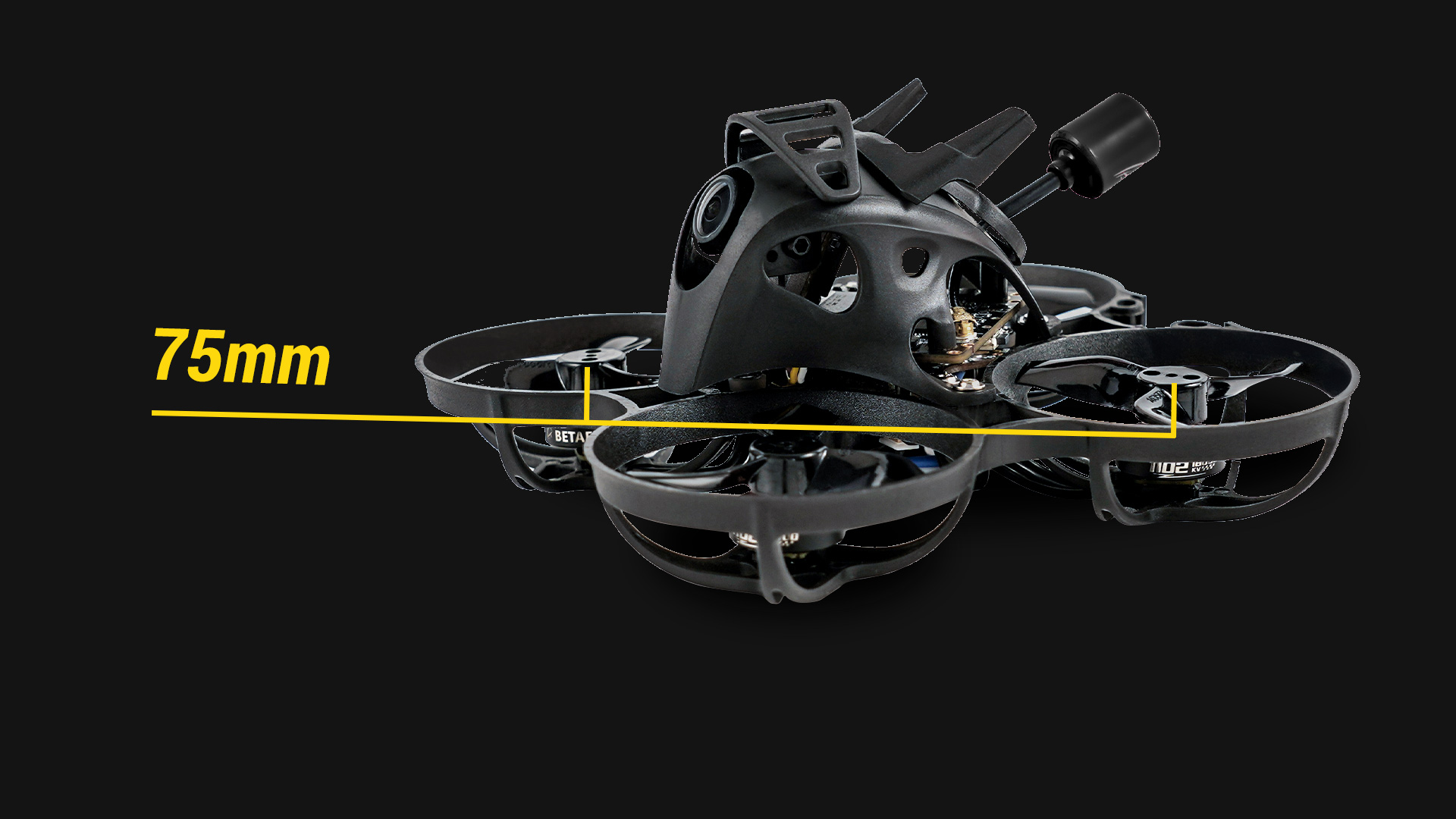

The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
8G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720pwith 100fps/60fps HD flight videos without interference.
Specification | |
| Camera | |
| Model | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g |
| Dimensions | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V |
| Supported FC System | Betaflight |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average delay 22ms |
| Antenna | IPEX |
| VTX Antenna | |
| Model | Polar antenna |
| Polarization | LHCP |
| Bandwidth | 5.6GHz-5.9GHz |
| Average Gain | 2dBi |
| Radiation Efficiency | ≥98% |
| VSWR | ≤1.4 |
| Connector | U.FL |
| Line Length | 90mm |
| Dimension | H105mm*R11.2mm |
| Weight | 1.5g |
| Packing List | |
| Avatar Mini 1S KIT | X1 |
| 4 Pin USB Cable | X1 |
| 6 Pin Power Cable | X1 |
| M2x3/4mm Screws | X2 |
| M2x16mm Screws | X4 |
| M2 Screw nut | X4 |
| 2.1×3.4x1mm Gasket | X5 |
