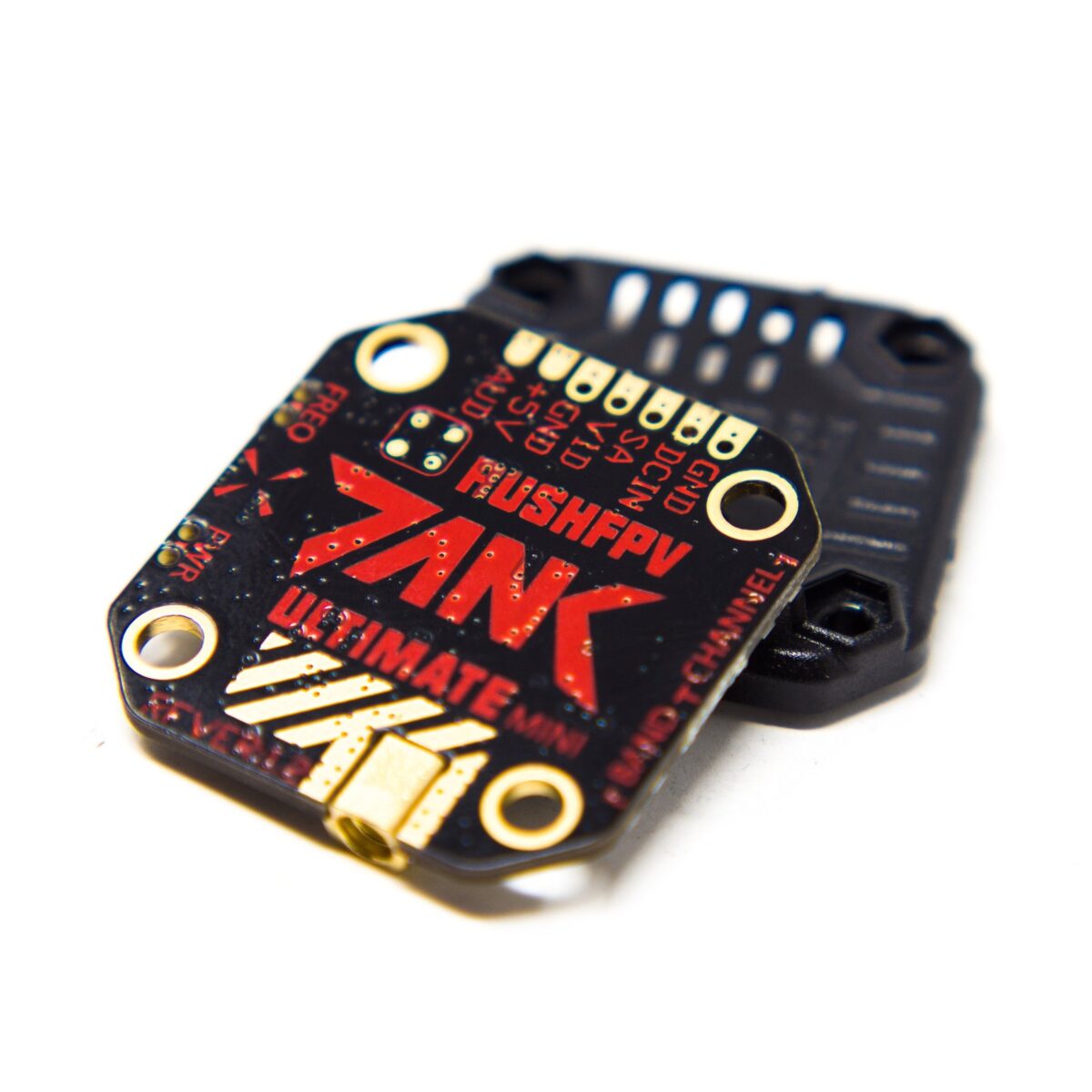

RUSHFPV brings their signature quality and style to the 20×20 form factor. Nothing but size was reduced from the 30×30 Tank Ultimate! This little beast still cranks out 800mW of clean, stable video signal for cruising far or handling heavy obstructions.
Features
- Compact Robust Design
- Variable Output from 25 to 800mW
- Pit Mode
- Officially Licensed Smart Audio from TBS
- Optional Protective Shield Included
Specifications
- Input Voltage: 7-36V(2-8S)
- Transmittion Power: PIT/25/200/500/800mW
- On Board DC Output: 5V 1A Max
- 12V Input Current:
- 40mA@PITMODE 95mA@25mW,
- 185mA@200mW 250mA@500mW,
- 380mA@800mW
- Channels: 48 RaceBand/LowRace
- Feature: Available with External Mic
- Mounting Dimensions: 20x20mm (VTX Holes M3, Shield Holes M2)
- Dimension: 28x28x3.3mm
- Weight: 4.46g (w/o Cover), 5.40g (w/ Cover)
Includes
- 1x Rush Tank Mini 25-800mW 20×20 VTX – MMCX
- 1x Protective Cover
- 1x MMCX Dipole Antenna
- 1x Wire Set
- 1x Hardware Set
